title: 编写一个小工具方便快速为文章添加 Banner | ||
slug: add-a-post-banner-tool | ||
--- | ||
![image.png](https://cdn.ijust.cc/img/20231012232656.png) | ||
|
||
|
||
## 背景 | ||
|
||
今天想投稿几篇文章到不同的网站,发现掘金要求提供文章 Banner 图,创建掘金文章集合也需要提供图片,提供图片倒是没啥,主要是尺寸都不一样,我默认只有 1:1 的图片。 | ||
|
||
奇奇怪怪的尺寸 + 重复劳动编辑 + 随用随弃无需保存的图片 + 风格尽量统一 = 做一个模板图片生成工具。 | ||
|
||
目前也不需要复杂的拖拽功能、多样的素材,看起来简单的图片背景+文字+尺寸可调就满足要求了。 | ||
|
||
那就顺手做一个,先做一个简单版本的,也积累一些常用代码 | ||
|
||

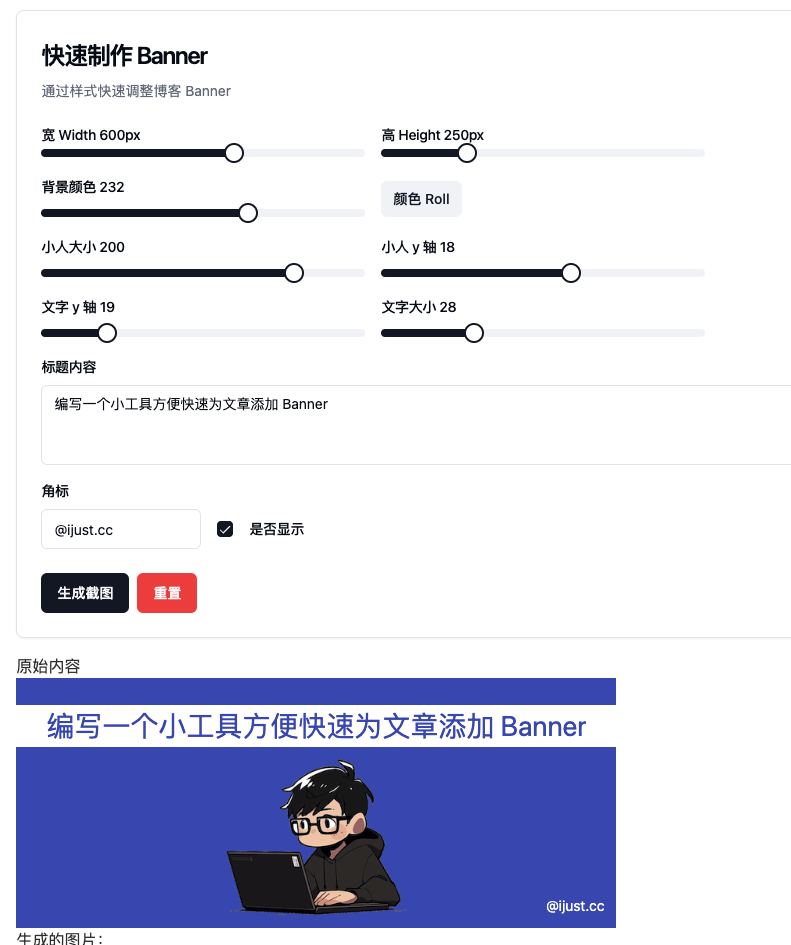

目前实现的效果长这样 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231012233231.png) | ||
|
||
## 制作思路 | ||
|
||
- 固定一个常用的模板,文字要可以编辑 | ||
- 样式可以使用 html2canvas(特意使用了一个其他方案) 生成图片 | ||
- 避免样式不同,背景可变 | ||
|
||
## 技术选型 | ||
|
||
### shadcn 样式 | ||
|
||
功能不复杂,写个表单,堆个样式,生成图片就可以。对完成任务有信心,所以尝试困难 i+1 ,我能不能顺手学习的 tailwind 相关的组件库。 | ||
|
||
博客的网站已经整体使用 tailwindcss + varlet 组件了,不想重新引入 element-plus/ arco-design 相关的组件,看起来 tailwindcss 提供的组件,侵入性不大,打包体积应该影响不大。 | ||
|
||
翻阅笔记,之前就加入收藏夹的 shadcn 映入眼帘,目前 shadcn-vue 进展特别快,样式比较简约,背后依赖 radix 作为低级封装,应该挺不错的。后续 shadcn 模板库起来了,应该也不错。 | ||
|
||
这样选择 shadcn-vue 作为组件库,开搞。 | ||
|
||

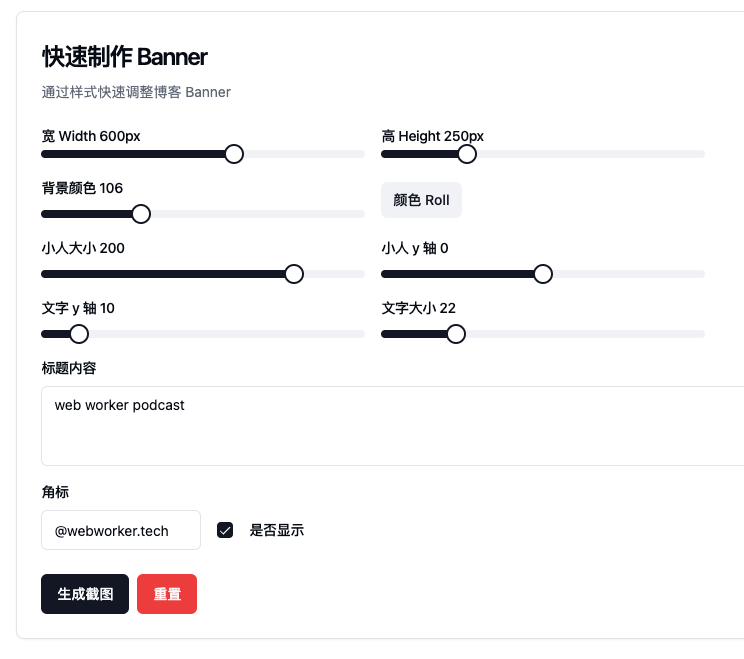

用起来稍微有别别扭,看了一会儿也就顺眼了,风格很素,我选择 gray 风格,也没有特别傻黑。 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231013000335.png) | ||
|
||
|
||
### html-to-image 生成图片 | ||
基于 html 生成图片,大名鼎鼎的 html2canvas 就很不错,我去 https://npmtrends.com/ 一搜,发现 https://github.com/bubkoo/html-to-image 还不错,更新频率高、文档样式现代,api 清晰,也拿来用 | ||
|
||
### 动态颜色 hsl | ||
|
||
背景颜色这块,我习惯稍微素一点的颜色,常规的 taiwindcss colors 感觉还不太够,我想更自由一点,所以我把目光投向了相同饱和度、亮度,不同色相的思路。 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231012234622.png) | ||
|
||
这一点在 ps 上用的比较多,通过拖动色相,快速改变整体颜色。 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231012234705.png) | ||
|
||
这一块用到的是 HSB 色彩模型,相同位置,只修改色相就可以。如下图。 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231012234825.png) | ||
|
||
这样 hsb 的后两者就有值了,H 通过滑块拖动就可以。 | ||
|
||
第一反应 filter,也就是 `hub-rotate` | ||
|
||
```css | ||
.hue{ | ||
filter: hue-rotate(45deg); | ||
} | ||
``` | ||
|
||
实际写出来不好使,部分元素比如人物形象不参与 filter ,做不到,要逐一修改 background 和 text 还挺麻烦。 | ||
|
||
还是动态修改 css,但我发现 css 里没有 hsb 有个 hsl,问问军师: | ||
|
||
> 介绍 hsb 和 hsl 的区别 | ||
> HSB(色相、饱和度、亮度)和 HSL(色相、饱和度、亮度)是两种常用的颜色模型,它们在描述颜色的方式上有一些区别。巴拉巴拉 | ||
> 两者如何转换? | ||
```js | ||
// HSB to HSL | ||
function hsbToHsl(h, s, b) { | ||
let l = (2 - s) * b / 2; | ||
s = s * b / (l < 0.5 ? l * 2 : 2 - l * 2); | ||
return [h, s, l]; | ||
} | ||
|
||
// HSL to HSB | ||
function hslToHsb(h, s, l) { | ||
let v = l + s * (l < 0.5 ? l : 1 - l); | ||
s = 2 * s / (v + l); | ||
return [h, s, v]; | ||
} | ||
|
||
// Example usage | ||
const hsbColor = [0.5, 0.7, 0.8]; | ||
const hslColor = hsbToHsl(...hsbColor); | ||
console.log(hslColor); // [0.5, 0.4666666666666667, 0.65] | ||
|
||
const convertedHsbColor = hslToHsb(...hslColor); | ||
console.log(convertedHsbColor); // [0.5, 0.7, 0.8] | ||
``` | ||
|
||
懂了,有现成的方法,试了试好使,工具库+1 ,学到了点东西。 | ||
|
||
一番操作,就实现了 css 动态修改 h 色相。 | ||
|
||
```vue | ||
<div :style='{ | ||
background: 'hsl(' + config.hue[0] + ',48.1%,48.6%)', | ||
}'>动态背景<div> | ||
``` | ||
|
||
chrome 实际运行的时候,还是 rgb,但是用着舒服,拖拽滑块颜色就改变了。 | ||
|
||
改变颜色时候顺手加个 will-change 和 transition 舒服。 | ||
|
||
## 效果 | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231013000901.png) | ||
|
||
![image.png](https://cdn.ijust.cc/img/20231012232656.png) | ||
|
||
## 展望 | ||
|
||
后续可以尝试作为独立服务,图片自定义啥的。 |
